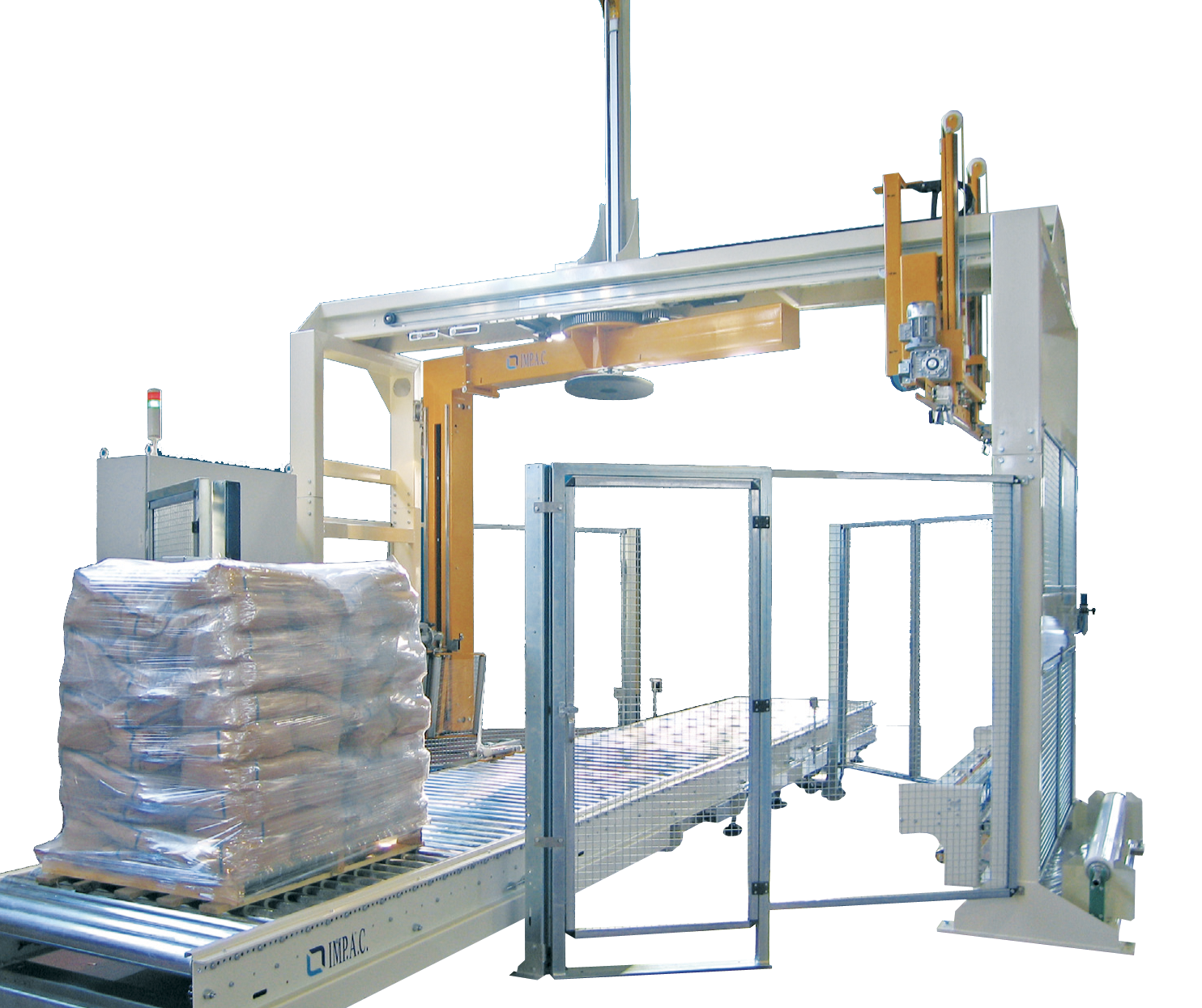

IMP.A.C. BR 4A+TOP
Turning arm stretch wrapping machine with top covering device

Thanks to the rotating arm system, the pallet remains stationary throughout the entire cycle, ensuring stability and safety even for unstable or large loads.

With a production capacity of up to 52 pallets/hour, this machine is ideal for high-production industrial lines. The TOP cover device ensures airtight sealing of the load, protecting it from dust, moisture, and external agents.

Technology and Operation

Rotating arm with fixed pallet

The rotating arm wrapping system allows pallets to be wrapped without moving them, reducing the risk of load instability and optimizing operational safety.

Spiral wrapping with film pre-stretch

The wrapping is done with a spiral system, adapting to pallets of varying heights, while the film pre-stretch optimizes material consumption, reducing costs and ensuring an effective wrap.

TOP cover device

The TOP system applies a top cover to the pallet, making it airtight and protected from weather, dust, and contamination.

Upper pressing option

Available as an option, the top press ensures greater load stability during wrapping, particularly useful for light or irregular pallets.

Optional accessories:

1. Strapping/film cordonatura device to ventilate/stabilize the palletized product.
2. Welding and film cutting device.
3. Dispositivo di pre-stiro film 300%.

TheIMP.A.C. BR 4A+TOP is the ideal choice for companies needing a reliable, high-performance automatic winder capable of fast, protective and efficient winding, perfect for high-intensity industrial environments.
