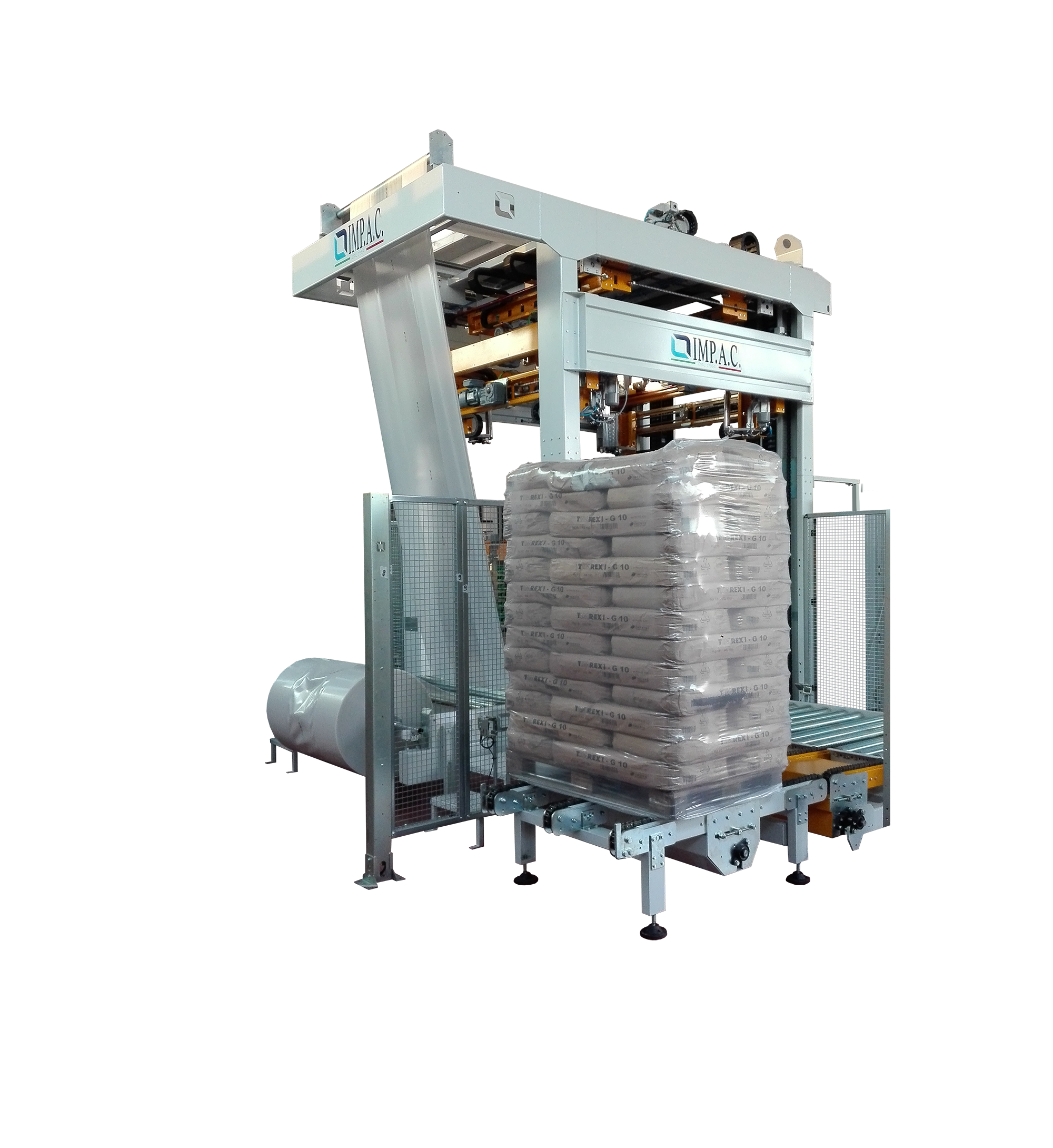

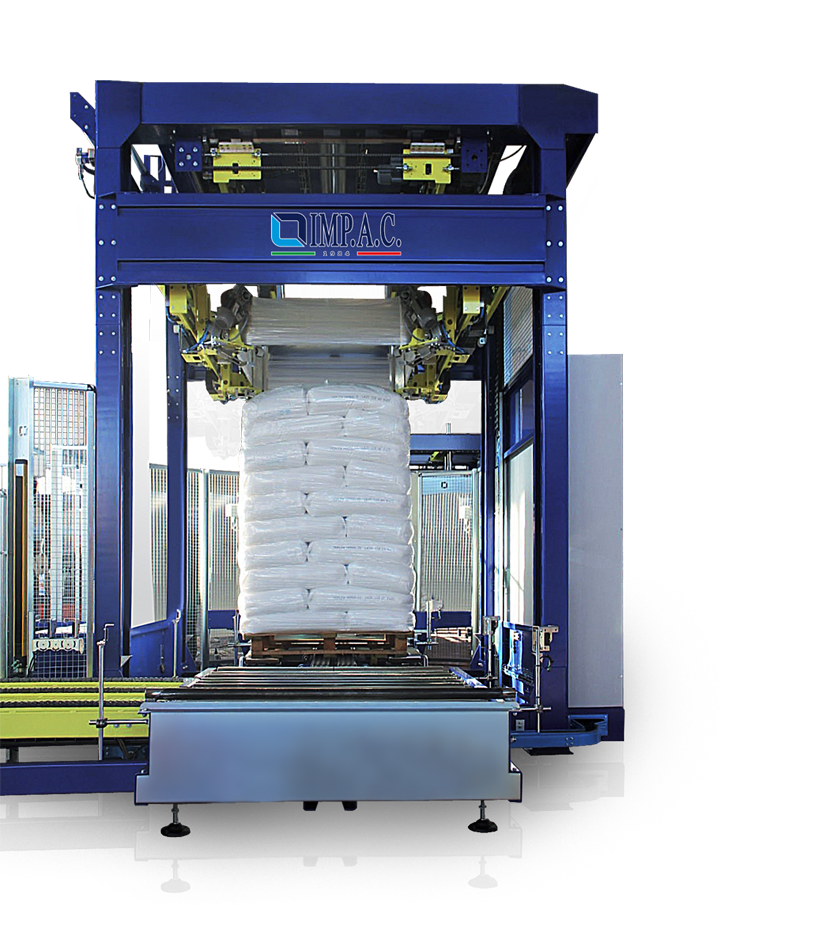

IMP.A.C. STRETCH AT 60
Automatic stretch hood machine with a patented top down system

Scroll down

The IMP.A.C. STRETCH AT 60 automatic cap cover is designed to ensure maximum protection and stability of the load, extending the cap beneath the pallet.

Ideal for high-production lines up to 60 pallets/hour, it represents the optimal solution for pallets with particularly unstable loads that cannot be treated with traditional spiral wrapping.

It uses cold stretch film technology, ensuring effective cap covering without the need for thermal treatments. The machine automatically adjusts to the height of the pallet, optimizing the cap length for each unit.

Key features

Maximum protection: The cap fully covers the pallet, including the base, protecting it from external elements.
Suitable for unstable loads: Perfect for pallets with products that cannot be wrapped using the traditional method.
Automatic height adjustment: Creates caps with optimized length for each pallet.
Cold stretch technology: No need for film heating, offering greater efficiency and safety.
Automated handling system: Ensures a smooth and fast process.

Operating cycle

The IMP.A.C. STRETCH AT 60 performs the cap covering cycle through several stages:

Pallet dimension entry and detection: The system automatically captures the load measurements.
Unwinding of the film: The film is prepared for processing.
Opening and gripping of the film: The tubular film is opened and secured at four points.
Cutting and sealing of the cap: The film is cut and sealed to form a cap with optimized length.
Crimping of the film: Using motorized wheels at the four corners, the film is prepared for stretching.
Stretching of the cap: The mobile frame descends to adapt the cap to the shape of the pallet.
Release of the cap under the pallet: The film is secured beneath the base for total protection.
Pallet evacuation: The protected pallet is transferred to the next phase of the production line.
Maximum ease of use and maintenance.
Patented system.

The IMP.A.C. STRETCH AT 60 is the ideal solution for companies that require secure, automated, and high-performance cap covering, ensuring maximum protection and stability of the load in all conditions.

The patented system allows for ground-level operation during coil loading and maintenance services.

Automatic stretch hood machine with a patented top down system

Max Production: 60 pallets/h

Max dimensions for standard pallet

Max. 1200 x 1200 mm

Max height for standard pallet

Min 500 mm - Max 2000 mm

Type of film

Elastic pleated tubular film.

Auxiliary voltage

24 V

Compressed air consumption

150 Nl/min

Max weight for standard pallet

2000 Kg

Operational capacity

60 paddles/h

Installed power

12 KW

Film thickness

Max. 200 micron
Min.80 micron

Air pressure

6 bar

Indicative weight

5000 Kg

Product benefits

__ Complete protection

Full coverage of the pallet, including the base, for optimal stability.

__ Maximum speed and productivity

Up to 60 pallets/h, ideal for high-speed lines.

__ Automatic adaptability

The system automatically adjusts the cap length based on the height of the pallet.

__ Suitable for critical loads

Perfect for pallets with highly unstable products.

__ Efficient and safe technology

Uses cold stretch film, without the need for heat.

__ Patented system

With coil loading at ground level.
