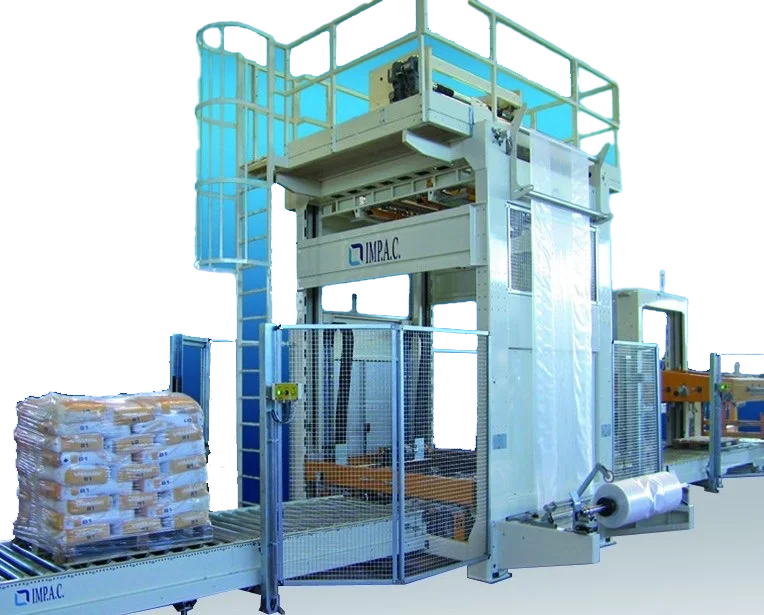

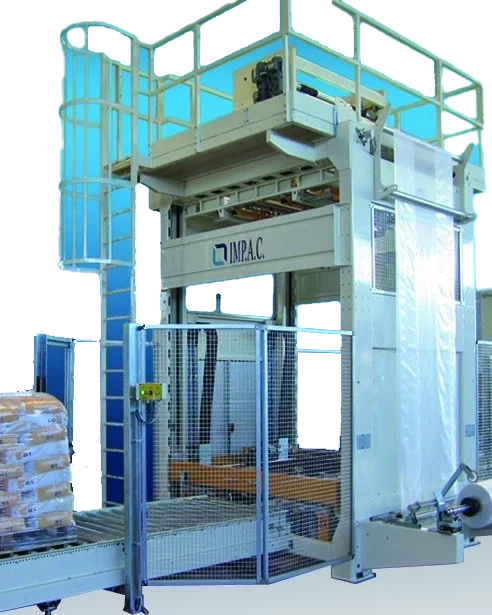

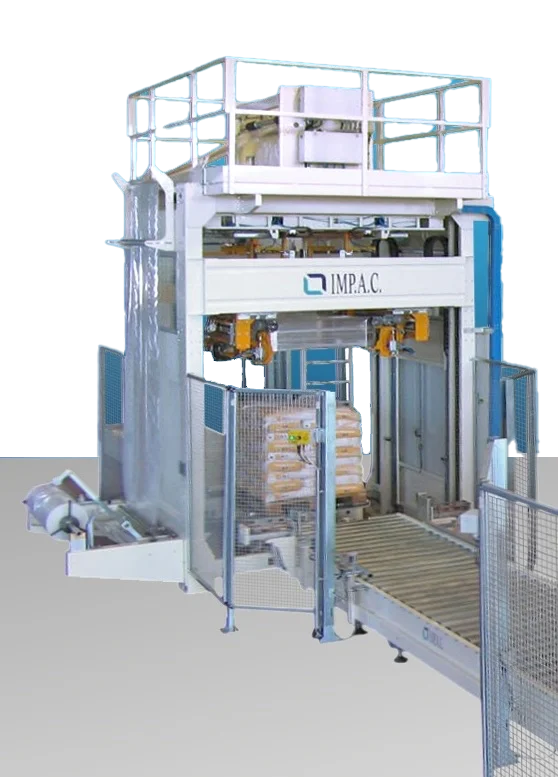

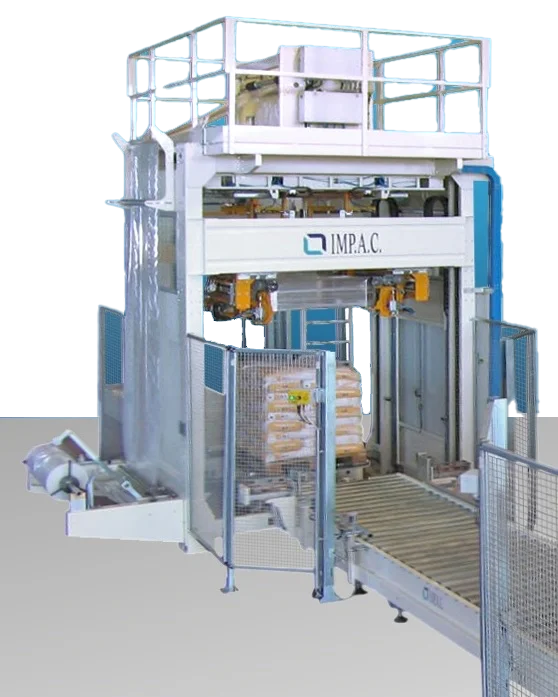

The IMP.A.C. STRETCH A 30 is an automatic cap cover designed to ensure maximum protection and load stabilization, thanks to the extension of the cap beneath the pallet.
Ideal for high-production lines (up to 30 pallets/h), this machine is perfect for packaging unstable products that are difficult to handle with conventional wrapping systems.
Thanks to the innovative cold stretch technology, the film adapts without the need for heating, ensuring a hermetic, durable, and cost-effective wrap. The cap cover automatically adjusts to the height of the load, creating customized caps for each pallet.
Technology and Operation
Stretch film cap covering system
The IMP.A.C. STRETCH A 30 uses a tubular film that is unwound, cut, and sealed to form a cap, which is then stretched and securely attached to the pallet in an optimal way.
Automatic adjustment to the load height
Thanks to the detection sensors, the machine adjusts in real time to the pallet’s dimensions, optimizing material consumption and ensuring a uniform and secure result.
Automated operating cycle
Pallet dimension entry and detection.
Unwinding of the film from the tubular roll.
Opening of the film and gripping at four points.
Cutting and sealing to form the cap.
Mechanical crimping of the film at the four corners.
Stretching of the cap by lowering the mobile frame.
Release of the cap under the pallet for an airtight seal.
Automated evacuation of the pallet.
The IMP.A.C. STRETCH A 30 is the perfect solution for companies that need a reliable, fast, and high-performance cap covering system, capable of ensuring safety and optimal protection for every type of load.
Product benefits
__ Total protection
The stretch cap covers the entire pallet, including the base, protecting it from dust, moisture, and weather conditions.
__ Optimization of film consumption
Dimensional detection system to reduce waste.
__ Fully automatic process
No manual intervention required, improving efficiency and productivity.
__ Perfect for unstable loads
Ideal stabilization for products that are difficult to wrap with traditional systems.
__ Suitable for high-production lines
High performance up to 30 pallets/h for industrial plants.
