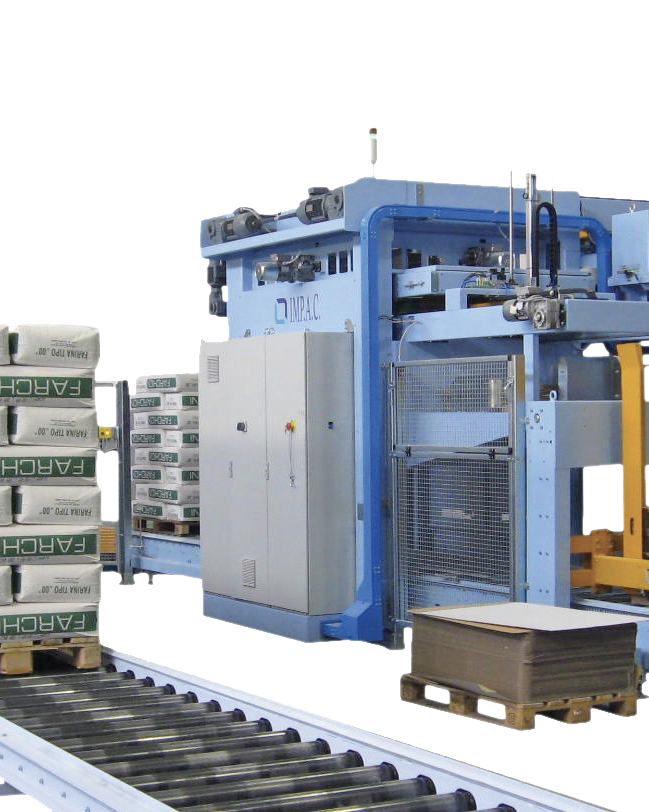

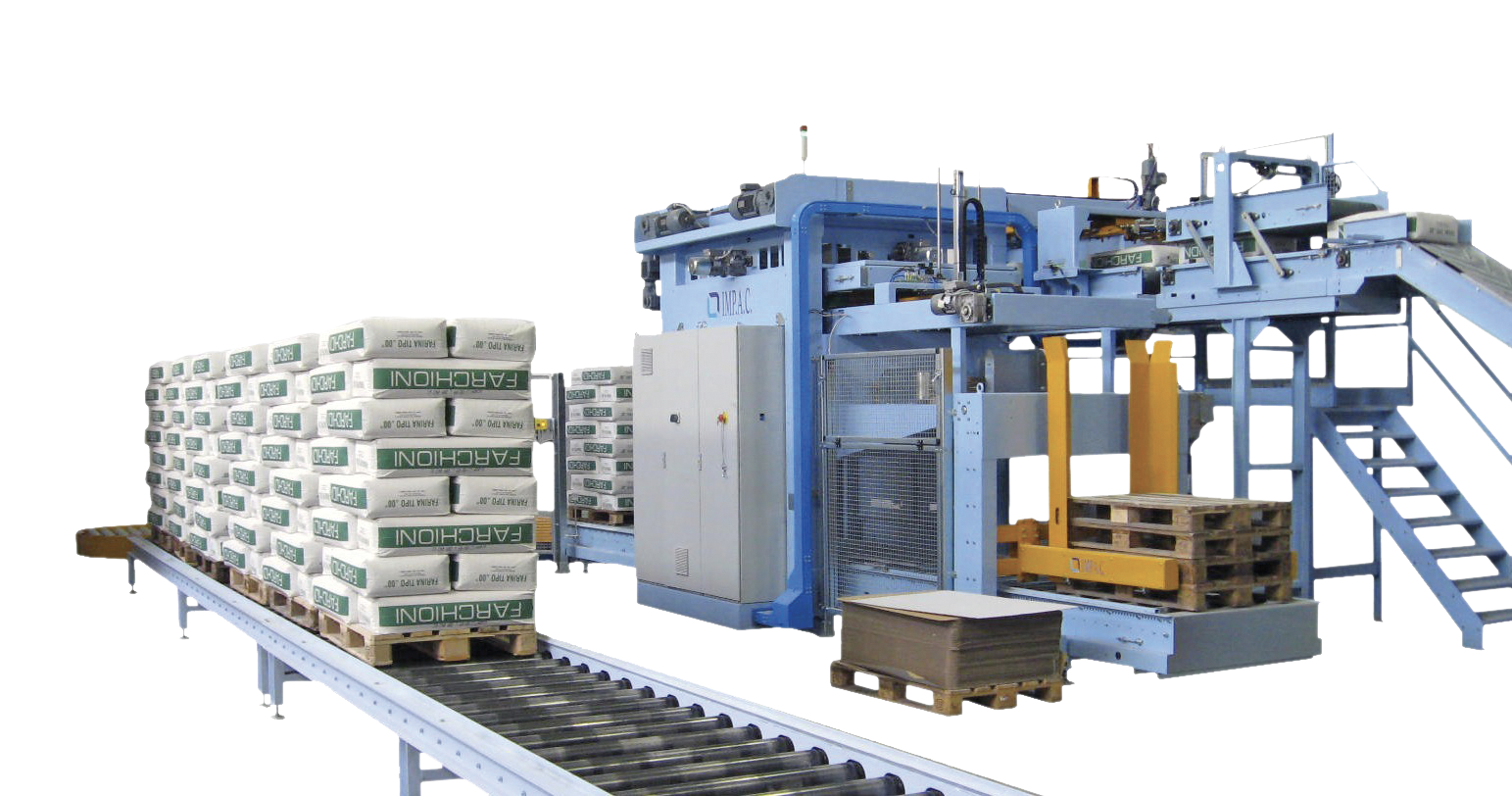

The "MULTIPALLET" IMP.A.C. 13 AMP palletizer is the ideal solution for operations with multiple production lines (2, 3, or 4) running simultaneously, requiring medium-to-high capacity and maximum flexibility.
With a production capacity of 1,100 bags/hour, the system is fully self-regulating to adapt to different types of bags to be palletized.
The system includes dedicated conveyor lines for each production line, capable of accumulating the necessary bags to form a complete pallet. Each line directs the bags to a specific accumulation conveyor until the required quantity is reached. Afterwards, the bags are retrieved by the palletizer, which automatically adjusts to the preset format.
The process includes:
- Bag compression, to uniform and compact it.
- Precise orientation, according to the predefined formation.
- Layer preformation, transferred to a platform with a central opening.
- Layer deposition on the pallet, thanks to the mobile platform and the lifter with photoelectric positioning.
The cycle continues until the pallet is complete, which is automatically evacuated and replaced to ensure operational continuity.
Ideal for:
- Industries with high production capacities and the need to manage multiple bag formats in parallel.
Product benefits
__ Self-regulating system
It automatically adjusts operation to different types and formats of bags.
__ Synchronized movements
Managed by a programmable modular system (PLC) to adapt to different formations and configurations.
__ High flexibility
Supports multiple production lines simultaneously.
__ Adaptability
Programmable for bags of various sizes, layer configurations, and palletizing patterns.
__ Modular design
Easily integrable with conveyor and accumulation lines.
