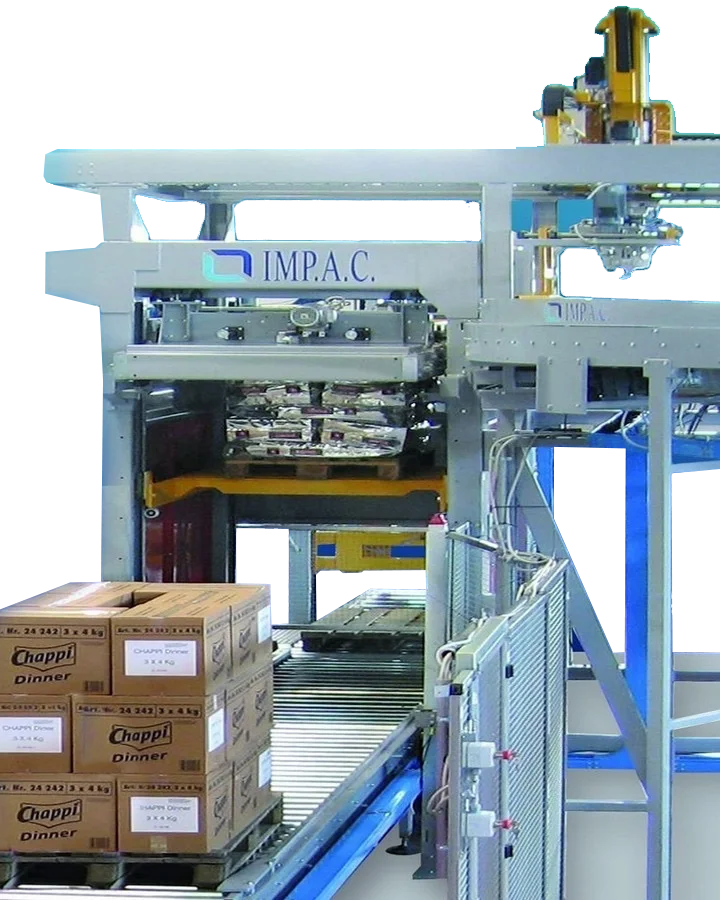

IMP.A.C. ROBOTEX 21 A
Boxes and bundle palletizer robot with conventional compacting system, create square and sturdy pallets

Thanks to its top feeding and four-sided compaction system, it ensures a stable and safe load placement, optimising pallet space.

Its advanced features make it ideal in contexts where conventional palletisers or other robots cannot operate with the same efficiency and flexibility.

Advanced technology

• High-precision gripping system: the full wrapping gripper allows handling of all types of bundles (paper, jute, plastic, valve bags, sewn, electro-welded) and complex materials such as half-empty bundles or those with fluid contents.
• Automatic compaction: each layer is pressed and leveled for stable palletizing.
• Dynamic handling: thanks to rotary, transversal, and longitudinal movements, the robot has full mobility across the entire horizontal plane.
• Paletta mobile: il sollevatore porta il pallet in posizione tramite rilevamento fotoelettrico, garantendo precisione e continuità operativa.
• Automated control (PLC): all movements are synchronized to optimize productivity and efficiency.

Operation

1. Picking and pressing: the incoming bundle from the line is pressed for uniformity and transferred to the pre-forming station.
2. Layer formation: the mechanical moving hand positions the bundle according to the set pattern.
3. Compaction and transfer: the layer is compacted on all four sides and placed on the mobile pallet.
4. Evacuation and replacement: the completed pallet is evacuated and replaced to start a new cycle.

Main advantages

Extreme speed: up to 600 carton-bags/h, perfect for intensive productions
Maximum precision: each layer is pre-formed and compacted for superior stability
Handling of complex bundles: perfect even for light bundles or difficult contents
Advanced automation: total optimisation with programmable PLC
Total adaptability: configurable for different sizes, formations and number of layers

The ROBOTEX 21 A is the ideal solution for those looking for a fast and reliable robotic palletiser, ensuring efficiency, precision and flexibility in any production environment.
