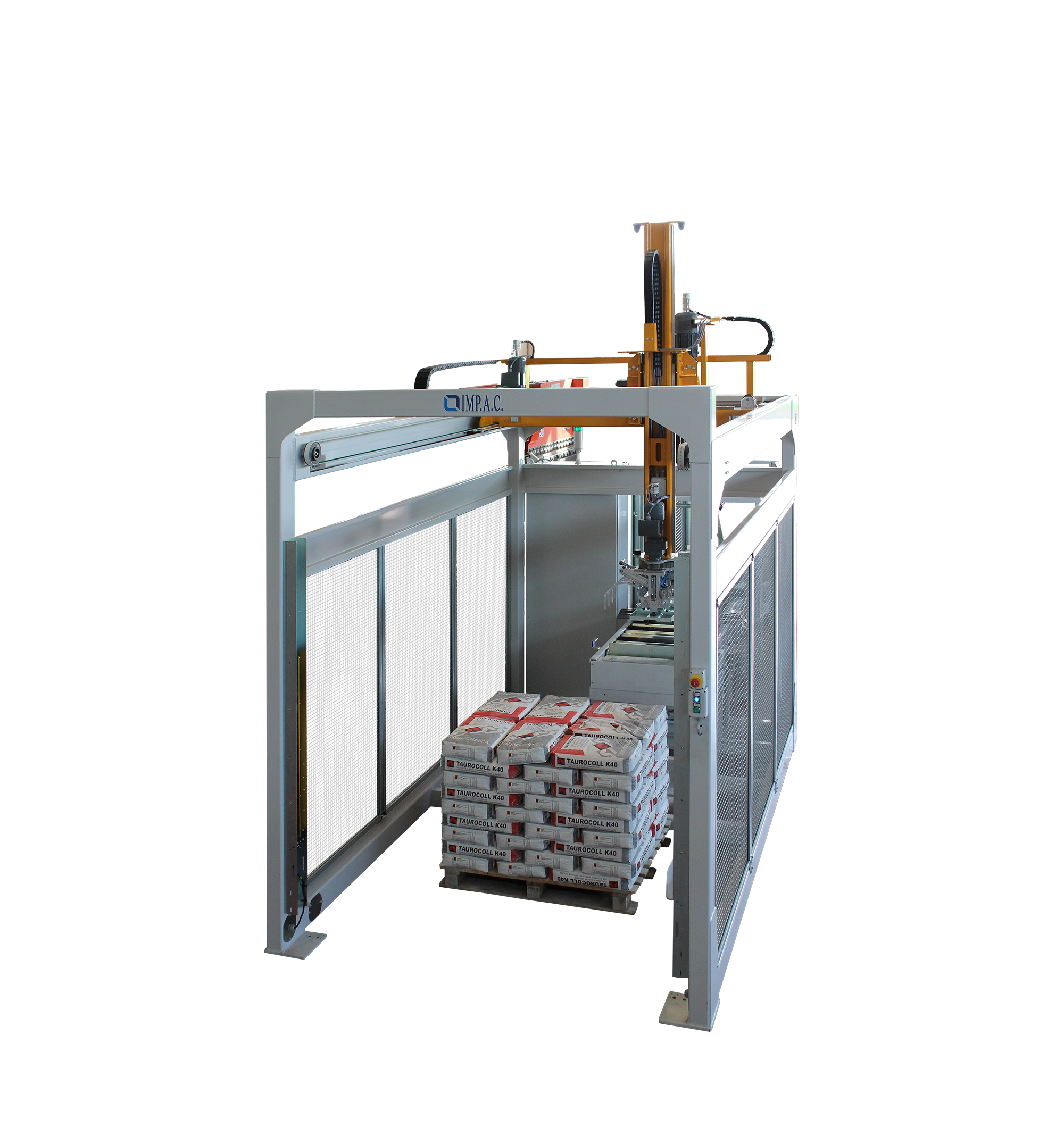

IMP.A.C. ROBOTEX 125 A-PT

Cartesian bag palletising robot with pallet on the ground
(also available as multi-pallet version)

Scroll down

The IMP.A.C. ROBOTEX 125 A-PT palletizer is the ideal solution for low production volumes, with a maximum capacity of 300 bags/hour and compact dimensions of just 4000x2400 mm, making it perfect for limited spaces.

Operation

  1. Bag pressing: the bag coming from the upstream line is pressed for uniformity and compactness.
  2. Transfer to the gripper: the pressed bag is oriented and picked up to be moved to the positioning station.
  3. Pick and place: the gripper picks up the bag, orients it, and places it on the pallet according to the set program.
  4. Continuous cycle: once the pallet is completed, it is manually removed and replaced with an empty one to start a new cycle.

Advantages

  • High precision and reliability thanks to the cartesian system.
  • Suitable for all types of bags, even those that are difficult to handle.
  • Compact and versatile, ideal for small spaces.
  • Low energy consumption and simplified maintenance.

The ROBOTOEX 125 A-PT model is an excellent choice to optimize low production volumes, ensuring quality, efficiency, and maximum adaptability to different bag formats.

Cartesian bag palletising robot with floor pallet (also available as multi-pallet version)

Cycles: 300 bags/h

Bag dimensions



Max. 1000 x 500 x h. 250 mm<br>Min. 300 x 200 x h. 80 mm

Pallet dimensions



Max. 1200 x 1000 x h. 140 mm<br>Min. 1000 x 800 x h. 80 mm

Maximum layer size



Max. 1300 x 1100 mm

Standard height of full pallet



1600 mm

Compressed air consumption



100 Nl/min

Max weight of full pallet



2000 Kg

Operating capacity



300 sacks/hour

Installed power


5 KW

Pressione di esercizio


6 bar

Control voltage



24 V

Indicative weight


3500 Kg

Product benefits

__ Total wrapping gripper

It provides a secure and stable grip for all types of sacks (paper, jute, plastic, valve, sewn or electro-welded), even for difficult sacks such as those that are partially empty or contain viscous materials.

__ Pressing device

It ensures optimal compaction of the bag on the pallet for stable and safe palletising.

__ Cartesian handling

The Cartesian axis system, controlled by encoders, guarantees precise positioning and operational versatility.

__ Advanced automation

Synchronisations and operations coordinated by a programmable modular PLC, which allows bags of different sizes, formations and number of layers to be handled.

One solution, many integrations.
The machine adapts perfectly to all indicated installations.
