IMP.A.C. ROBOTEX 225 A / 226 A
Robotic palletizer for boxes,klt and bundles

Scroll down

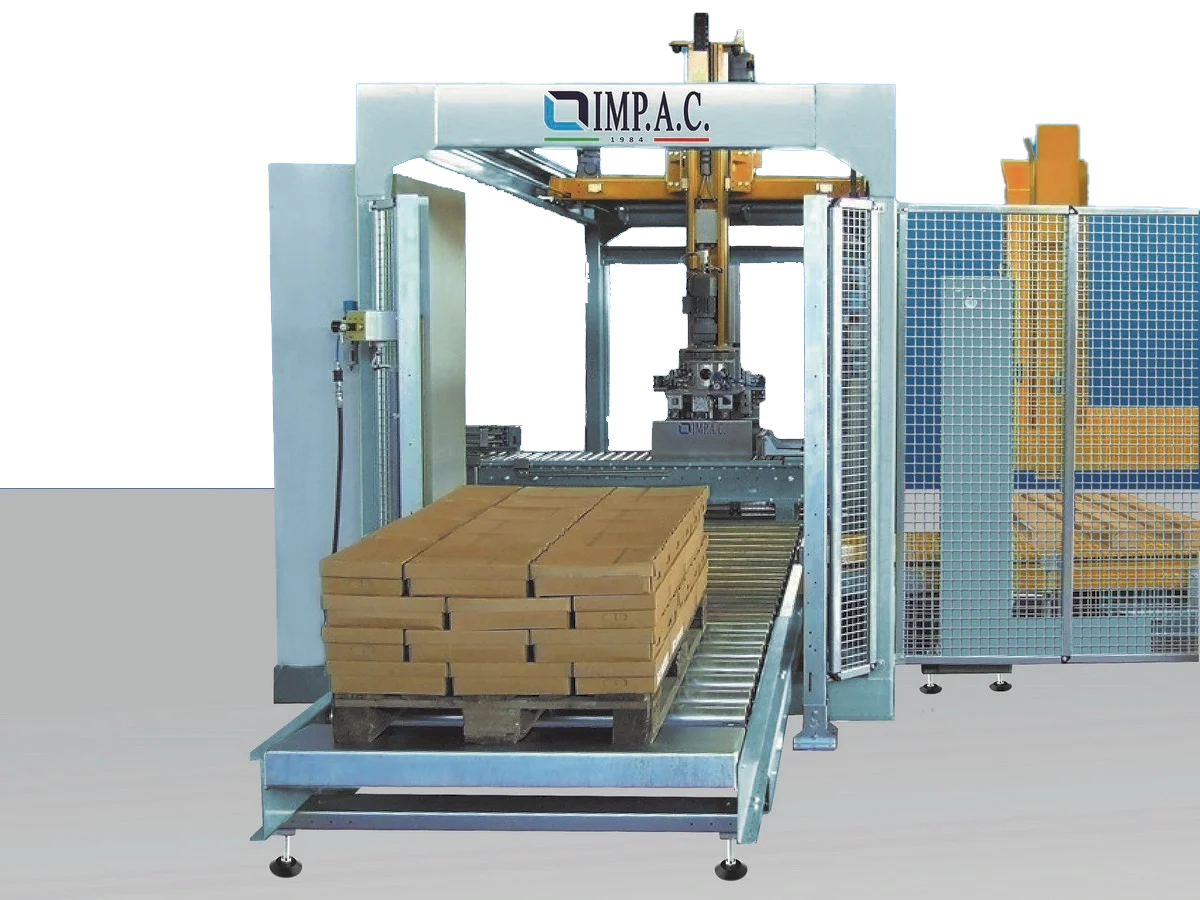

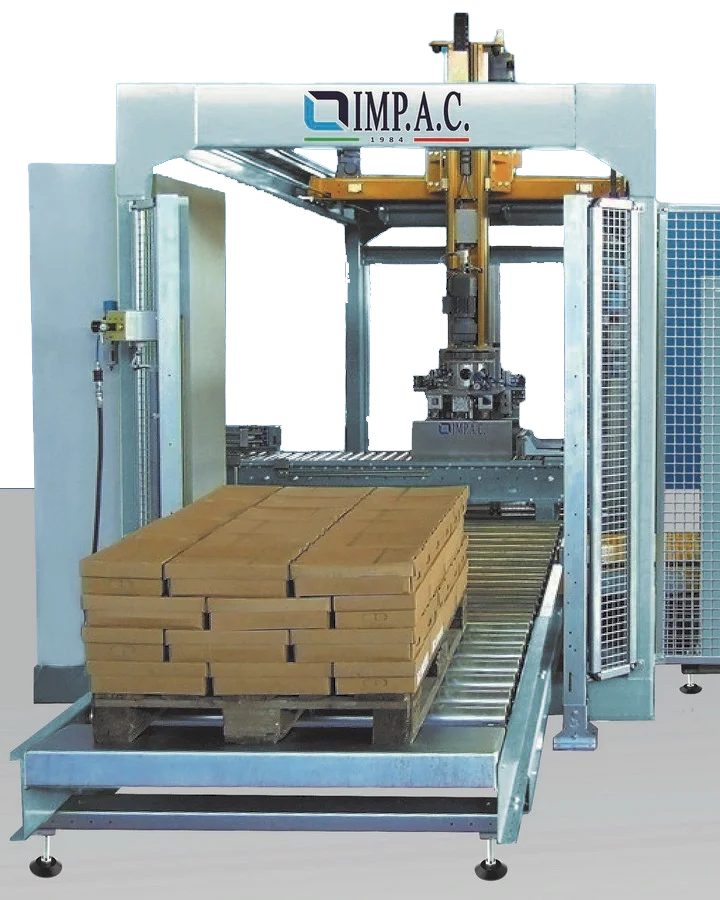

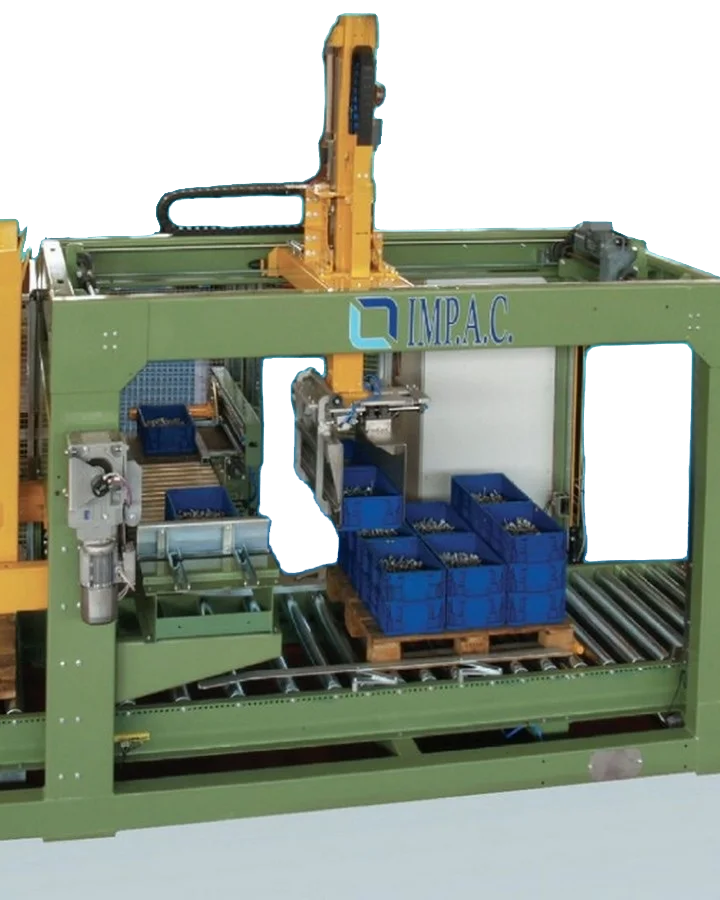

The IMP.A.C. ROBOTEX 225 A / 226 A is an automatic Cartesian-axis palletiser, designed to efficiently handle cartons, KLTs and bundles, distinguished by its compact design and high operating performance.

Ideal for optimising end-of-line operations, it guarantees reliability and precision even in high-intensity production environments.

Key features

  • Row preparation on the preformer: each row is prepared entirely on the preformer, ensuring a continuous and orderly flow.
  • Row palletising: the robot gripper picks up one complete row at a time, reaching a maximum speed of 300 cycles/h, with actual production varying according to the number of packs per row.
  • Automatic format changeover: thanks to PLC control, the machine allows versatile and fully automatic handling of different formats, reducing set-up times.
  • Compact design: small footprint for easy installation even in confined spaces.

The IMP.A.C. ROBOTEX 225 A / 226 A is the ideal choice for companies requiring a compact, versatile and highly efficient solution for automatic palletising, ensuring a smooth process and quality results.

Robotic palletizer for boxes,klt and bundles

Cycles: 300/h

Carton, KLT and bundle dimensions

Max. 450 x 400 x h. 300<br>Min. 200 x 100 x h. 50

Paddle size

1200 x 800 x h. 140<br>1300 x 900 mm

Standard full pallet height

1600 mm

Compressed air consumption

100 Nl/min

Control voltage

24 V

Max. full pallet weight

1500 Kg

Operational capacity

300 cycles/h

Installed power

7 KW

Operating pressure

6 bar

Indicative weight

400 Kg

Product benefits

__ Production up to 300 cycles/h
__ Fully automatic format change
__ Handling of cartons, KLT and bundles with the same equipment
__ High precision in parcel arrangement
__ Suitable for production lines with limited space

One solution, many integrations.
The machine adapts perfectly to all indicated installations.
