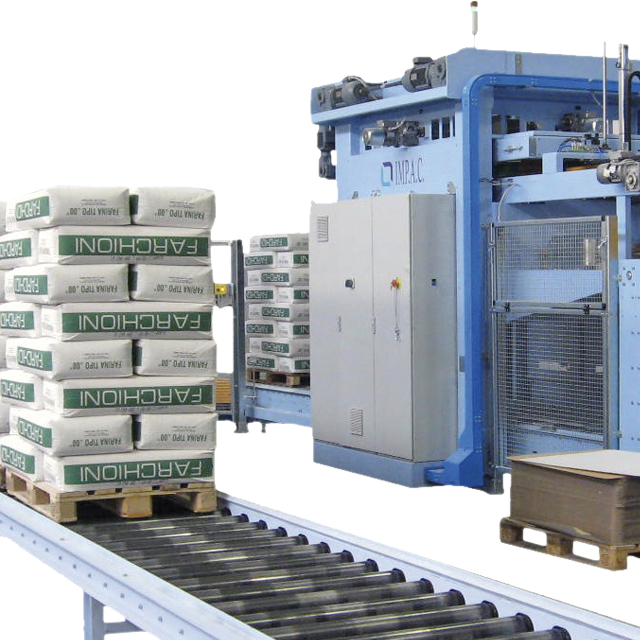

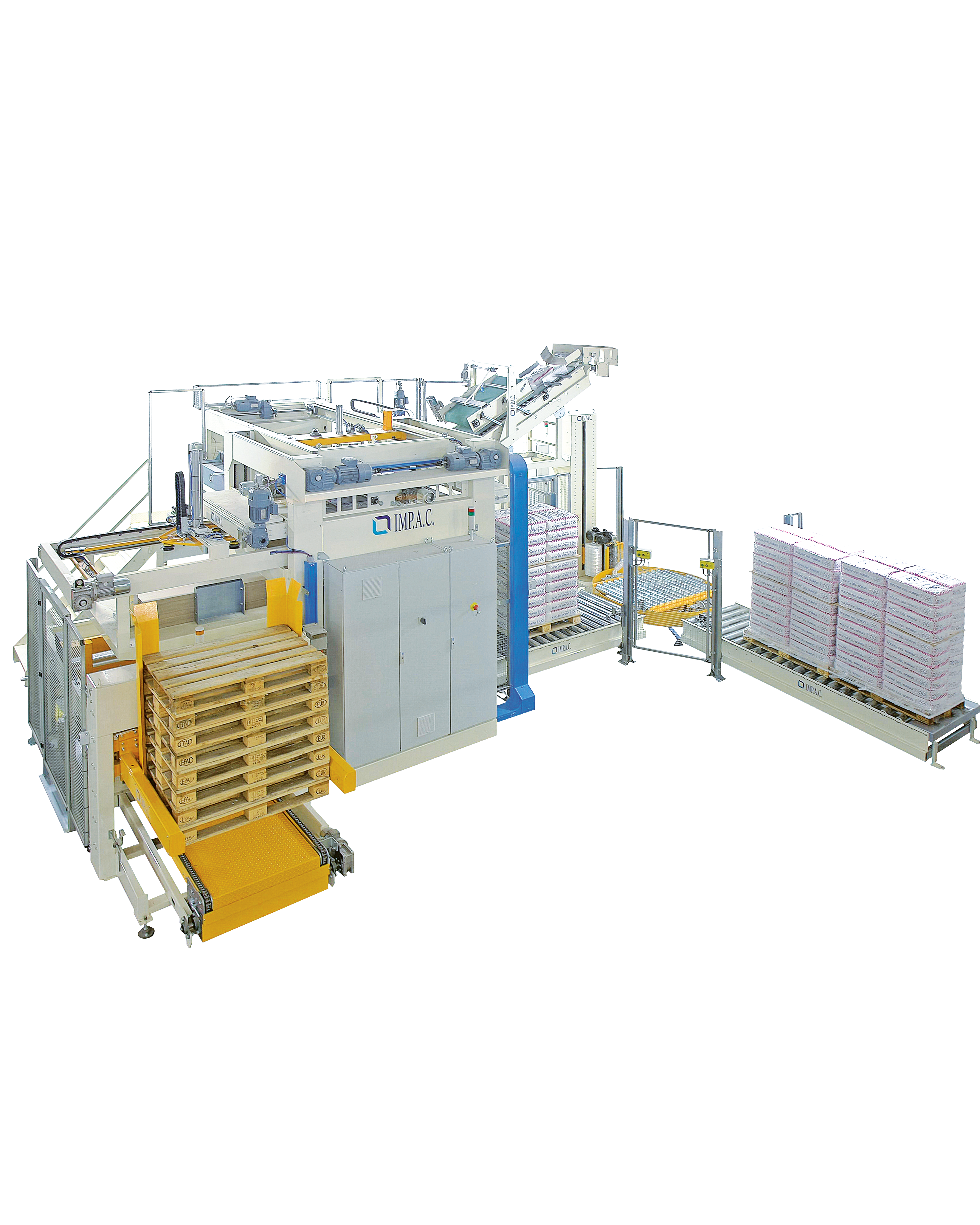

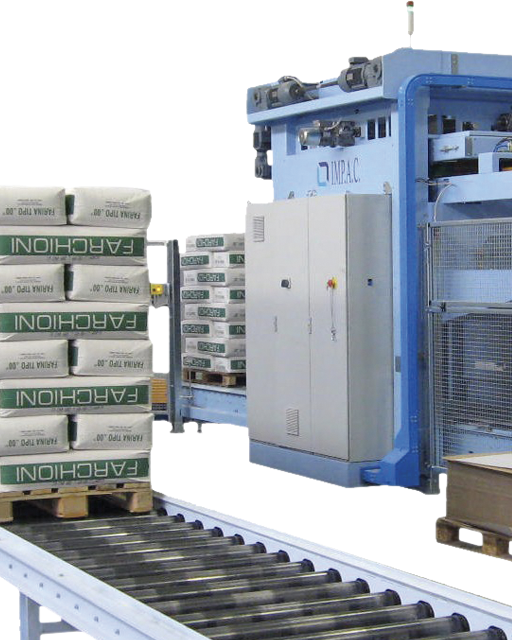

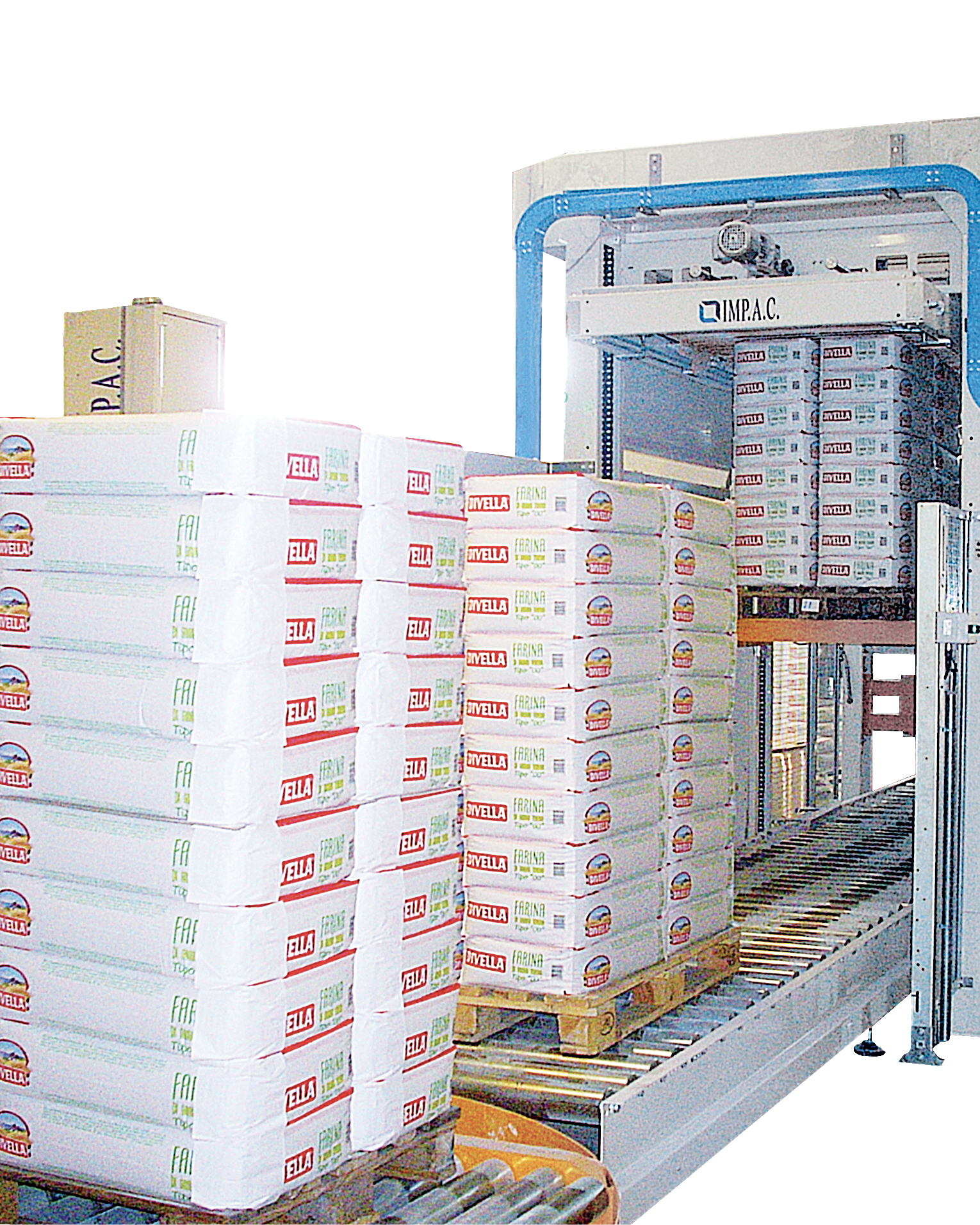

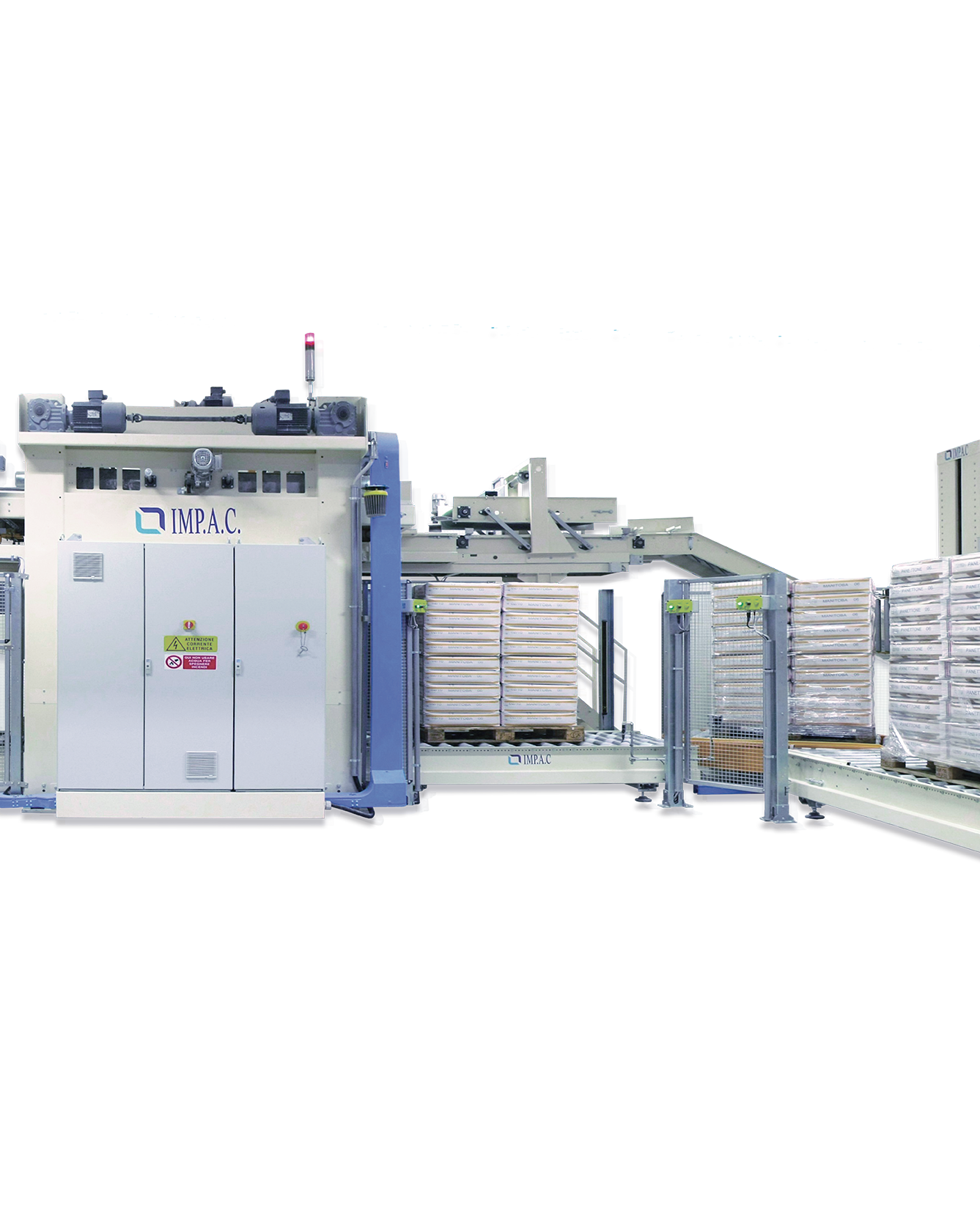

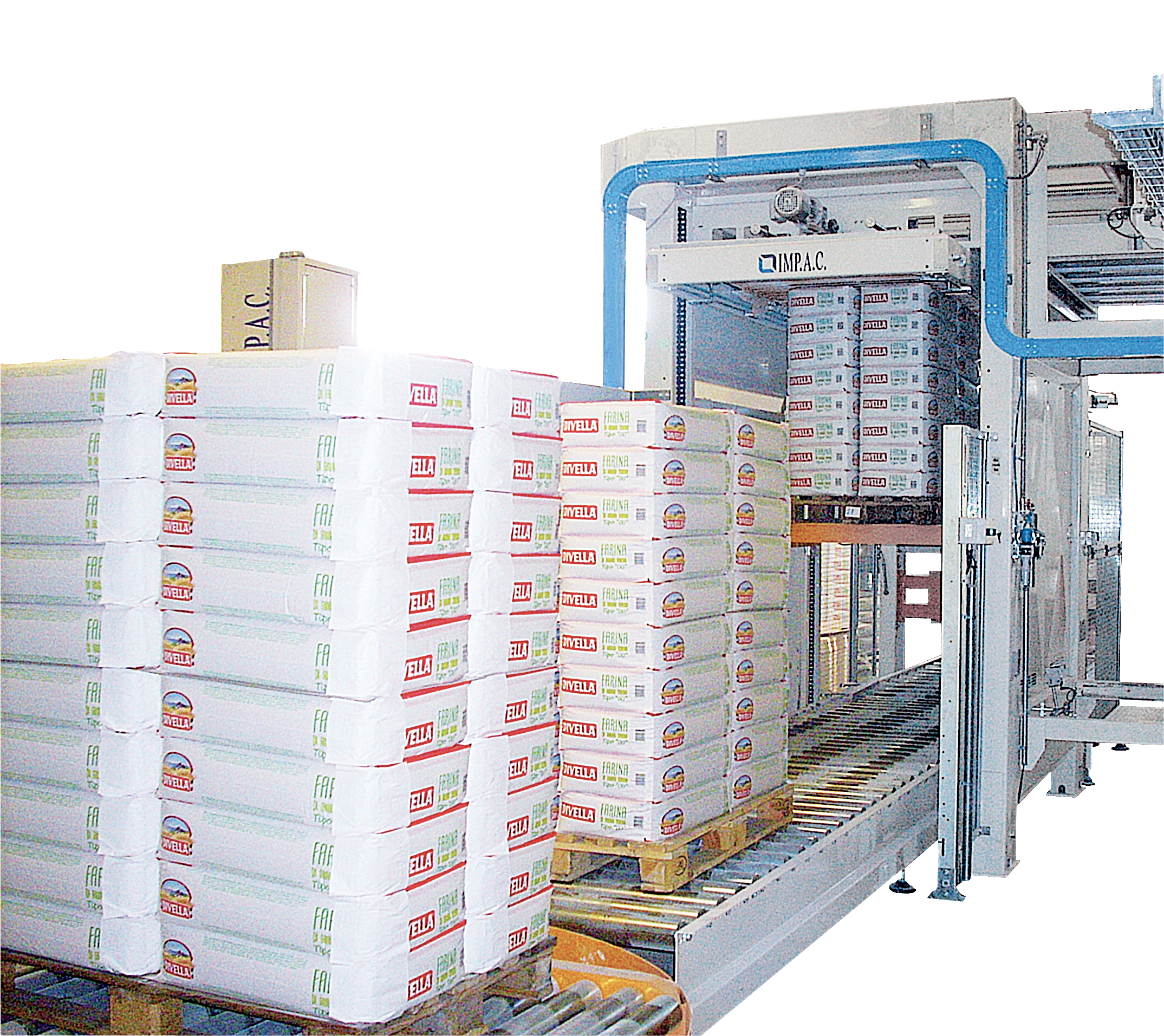

High-level bag palletizer high-speed capacity
Maximum Production:
11 AS: 1500 bags/h
11 AV: 1800 bags/h
Bag dimensions
Max. 800 x 450 x h. 250 mm
Min. 300 x 150 x h. 60 mm
Pallet dimensions
Max. 1200 x 1000 x h. 140 mm
Min. 1000 x 800 x h. 100 mm
Layer dimensions
Max. 1400 x 1250 mm
Standard full pallet height
1600 mm
Compressed air consumption
100 Nl/min
Max. full pallet weight
2000 Kg
Operational capacity
11 AS: 5 layers/min with a limit of 1500
11 AV: 6 layers/min with a limit of 1800
Installed power
11 AS: 15 KW
11 AV: 18 KW
Operating pressure
6 bar
Control voltage
24 V
Indicative weight
11 AS: 10000 Kg
11 AV: 12000 Kg
Product benefits
__ High production capacity
Up to 2400 bags/h.
__ Advanced automation
The pallet is lowered automatically with each layer deposit and, once completed, is transferred to a conveyor. At the same time, an empty pallet is moved to the loading position.
__ Optimised management
Each bag is compacted, oriented and transferred to the preforming section of the layer.
__ Precise storage
A complete layer is transferred to the loading station, where a sliding gate deposits it onto the pallet evenly.
__ Smart control
Programmable modular system (PLC) to adapt to different bag sizes, configurations and number of layers.
