IMP.A.C. 55 SA 4P/1500

Semi-automatic emptying system for palletized drums and IBC/containers

Scroll down

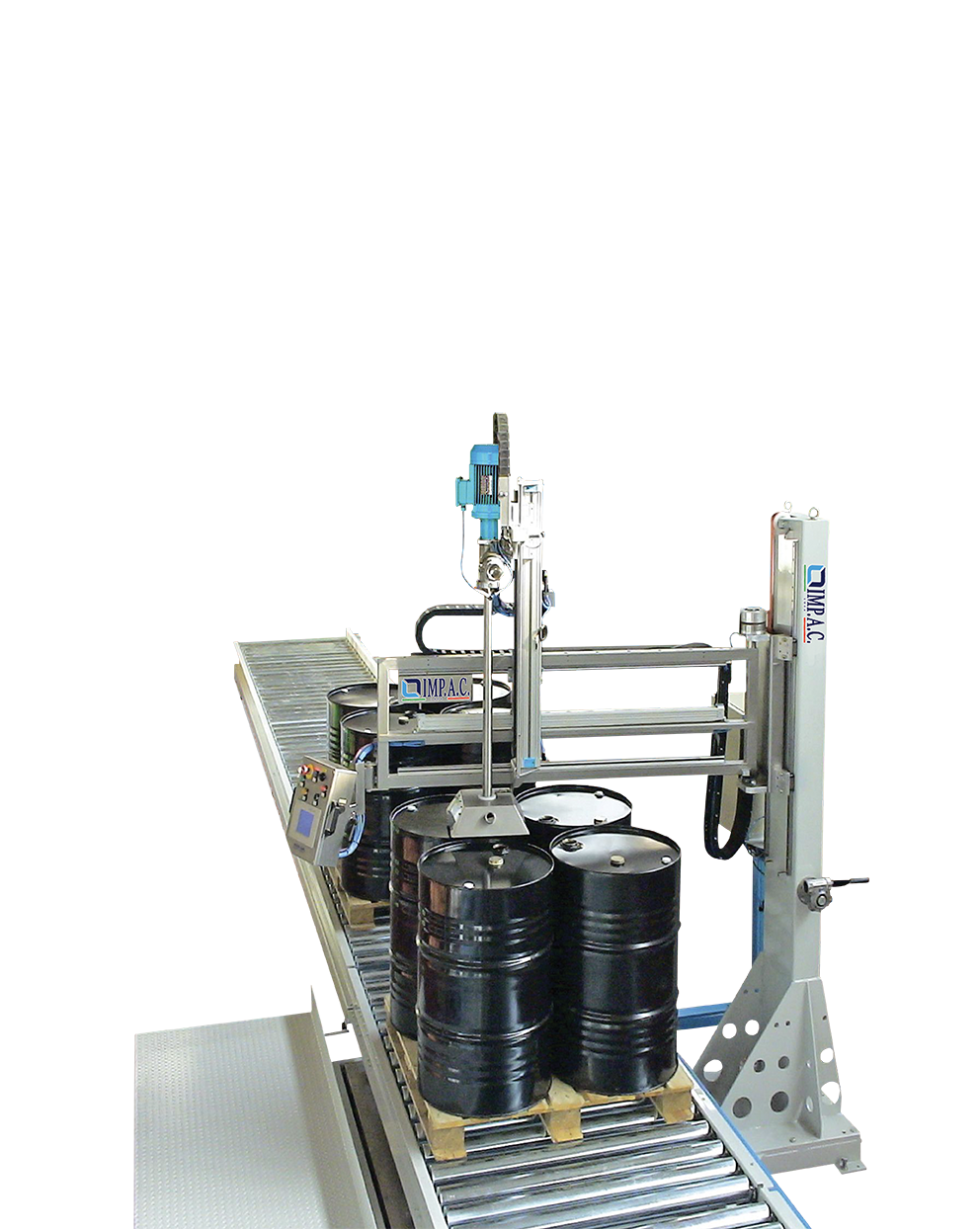

IMP.A.C. 55 SA 4P/1500 it is a semi-automatic emptying system for pellet drums and IBC containers for chemicals and related products

The semi-automatic emptying system is ideai for chemical product emptying in 220 I drums and 1000 I IBC containers.

The system consists in a nozzle with three-axis adjustment for pal/etized container emptying.

A weighing platform on /oad-cel/s detects weight during emptying operation of each container.

Semi-automatic emptying system for palletized drums and IBC/containers

Max. production:

24 drums/h

5 IBC/h

Container type

DrumsCn - IBC

Container dimensions




1200 x 1200 H1300 mm

Compressed air consumption ( IP 55 / ATEX 1-2)




from 90 Nl/min

Installed power (IP 55 / ATEX 1-2)




1,1 Kw - 380 V

Container capacity

Max. 1000 l<br />Min. 50 l

Working capacity

24 fusti/h<br />5 IBC/h

Container handling

Motorized

Indicative weight

700 Kg

Air pressure

6 bar

Product benefits

__ Emptying cycle with descent

Progressive nozzle descent according to weight.

__ Emptying cycle with lance

Emptying cycle from the bottom with emptying nozzle fully immersed.
