IMP.A.C. 55 SA 300

Semi-automatic emptying system for drums

Scroll down

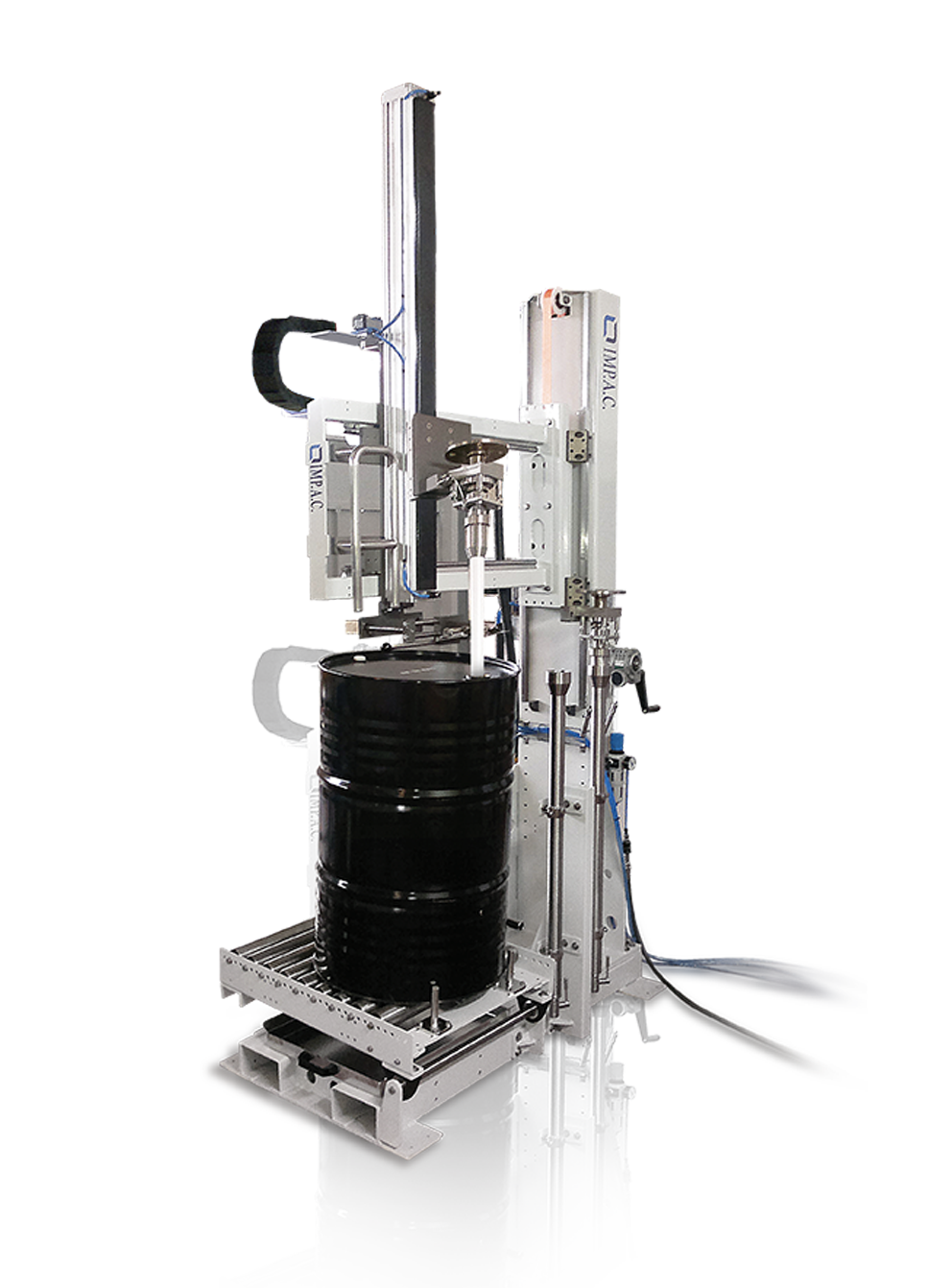

IMP.A.C. 55 SA 300 it is a semi-automatic drum emptying system for chemicals and related products.

The semi-automatic emptying system is ideai for chemical product emptying in 60-220 I drums and 5-10-25 I tanks.

The system consists in a nozzle with height adjustment for single container emptying.

A weighing platform on load-cells detects weight during emptying operation of each container.

Semi-automatic drum emptying system for chemicals and related products.

Max. production: 20 drums/h

Container type

Cans - Drums

Container dimensions




Max. H1000 - Ø600 mm

Compressed air consumption (IP 55 / ATEX 1-2)




from 60 Nl/min

Installed power (IP 55 / ATEX 1-2)




0,75 Kw - 380 V

Container capacity

Max. 30 l<br />Min. 200 l

Working capacity

20 drums/h

Container handling

Motorized

Indicative weight

500 Kg

Air pressure

6 bar

Product benefits

__ Emptying cycle with descent

Progressive nozzle descent according to weight.

__ Emptying cycle with lance

Emptying cycle from the bottom with emptying nozzle fully immersed.
