IMP.A.C. 55 SA DUMPER
Drum tipping system

Scroll down

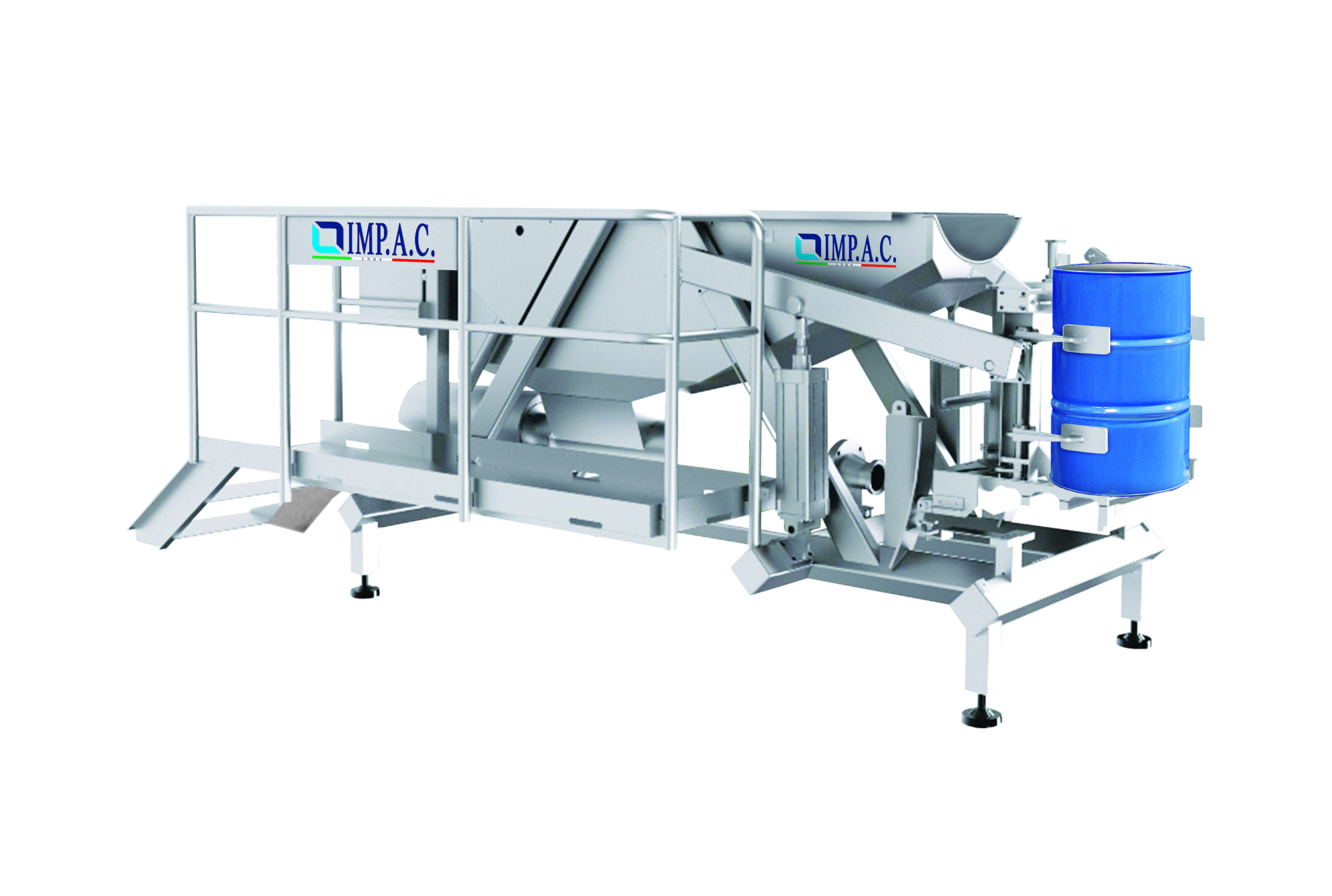

IMP.A.C. 55 SA DUMPER it is a semi-automatic drum tipping system.

The semi-automatic dumping system is ideai for food product emptying in 200-220 I drums with open top.

The system frame is made of stainless steel.

Semi-automatic full-opening tipping system

Max. production: 40 drums/h

Container type

Drums

Container dimensions


Max. H1000 - Ø600 mm

Consumo aria compressa (in caso di protezione IP 55 / ATEX 1-2)


from 90 Nl/min

Installed power (IP 55 / ATEX 1-2)


4,5 Kw - 400 V

Container capacity

Max. 220 lMin. 200 l

Working capacity

40 drums/h

Container handling

Motorized

Indicative weight

1800 Kg

Air pressure

6 bar

Product benefits

__ Emptying cycle with descent

Progressive nozzle descent according to weight.

__ Emptying cycle with lance

Emptying cycle from the bottom with emptying nozzle fully immersed.
